Question 1

What do I need to use Architechtures?

Architechtures · Accepted Answer

A computer, an internet connection, a high-definition monitor, and a Chrome browser. All processing happens on our servers so you don’t have to worry about anything.
Soon we will support all kinds of devices, even navigating the projects in View mode from your mobile phone.

Question 2

Do you support topography at the implantation level and associated calculations?

Architechtures · Accepted Answer

Currently, the application only supports a single implantation height for the basement and ground floors in the entire development, but each ground floor can have a different free height and consequently, the heights of the floors above can also be different in each building of the promotion.
We plan to include this functionality really soon.

Question 3

Is it possible to define the dimensioning of the facade openings?

Architechtures · Accepted Answer

Yes, we can define it globally for the entire promotion according to the use of the room in which it is located, or manually for specific instances.
It is allowed some degree of manual editing by residential typology, which includes opening sizing, as well as restricting opening sizing to lighting and ventilation restrictions. In any case, we are working to improve this feature.

Question 4

Does Architechtures guarantee compliance with regulations?

Architechtures · Accepted Answer

Architechtures allows the user to generate designs that comply with all the parameters defined by the designer, including regulations, but it is the responsibility of the designer himself to fine tune and adjust the platform, Architechtures is a productivity design tool, but it is not making decisions. In Auto mode, most of the parameters that guarantee compliance with different regulatory aspects are found in the section on minimum dimensions within the design criteria, although some are grouped into more specific sections, such as the sectioning of stairs found in in core configuration within each building.
Those normative aspects that are not resolved in Auto mode can normally be edited in Manual mode. For those elements that cannot be edited within the application, they can always be edited in BIM or CAD through our 100% compatible Downloadables with the most used formats in the sector: .XLSX, .IFC and .DXF.

Question 5

Do you support split plants at various heights? Or should the whole plant be at the same level?

Architechtures · Accepted Answer

Within the same building the entire floor will always be at the same elevation, but it could be modeled by making the partitions correspond to different joined buildings, with the different manual editing modes the necessary arrangements can be made. As a last resort, for those elements that cannot be edited within the application, they can always be edited in BIM or CAD using our downloadable 100% compatible with the most used formats in the sector: .XLSX, .IFC and .DXF.

Question 6

Is the structure calculated? Is the structure coordinated on residential floors and basement?

Architechtures · Accepted Answer

The application positions the structure at the level of general fit, and both the structure and the cores are completely coordinated in residential floors and basement in each modification we make in our project. The structure is not calculated or pre-dimensioned, generic 30x30cm pillars are represented assuming a generic case of a reinforced concrete structure.

All you need to get started

Architecture Design Powered by AI

User Interface: Browsing ARCHITEChTUERS building design platform

Residential Development Design – AI Powered Site Planner

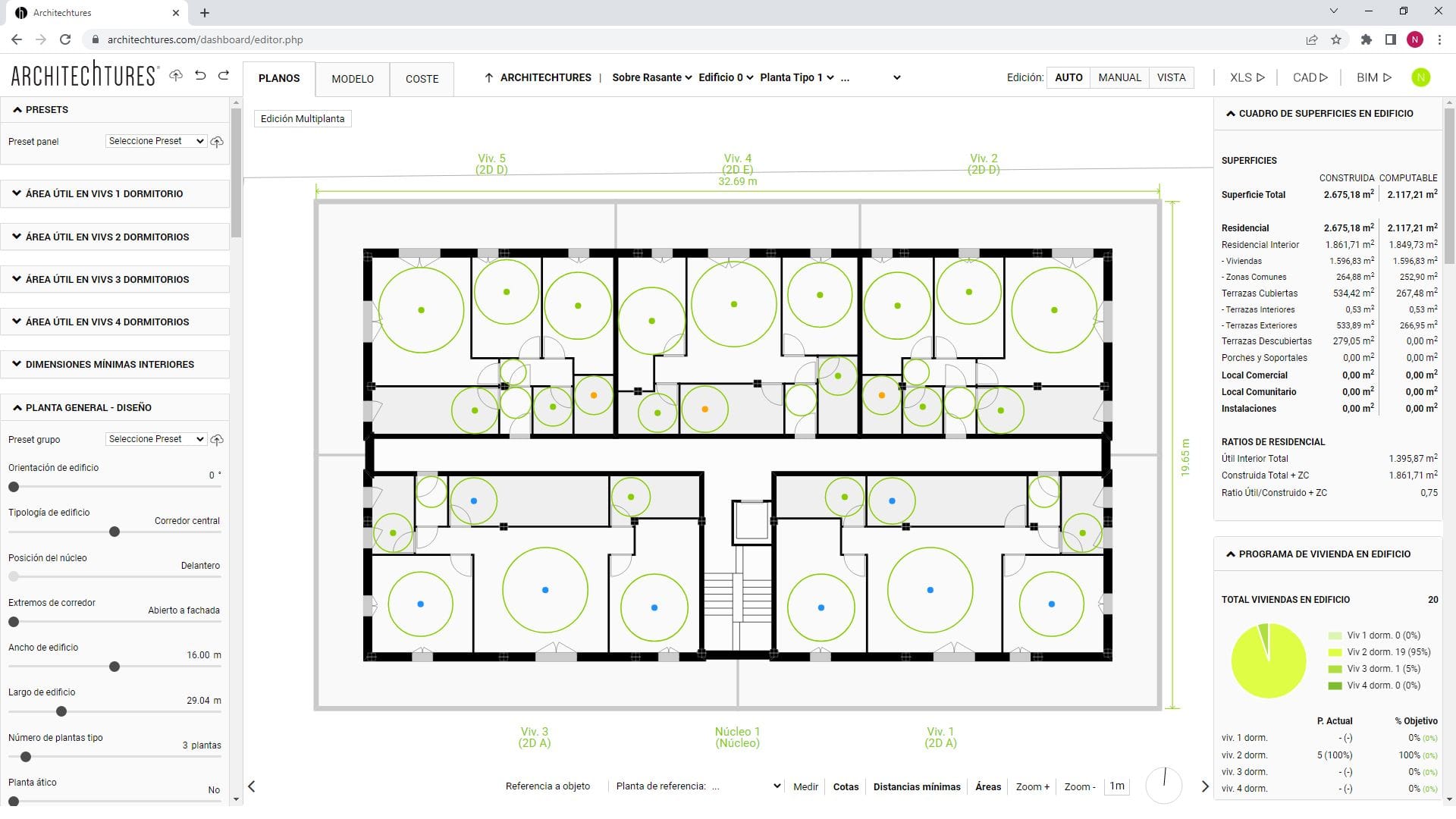

Building Design and BIM at the Building-Floor Level

Floorplanner – AI Assisted and Manual Editing Modes

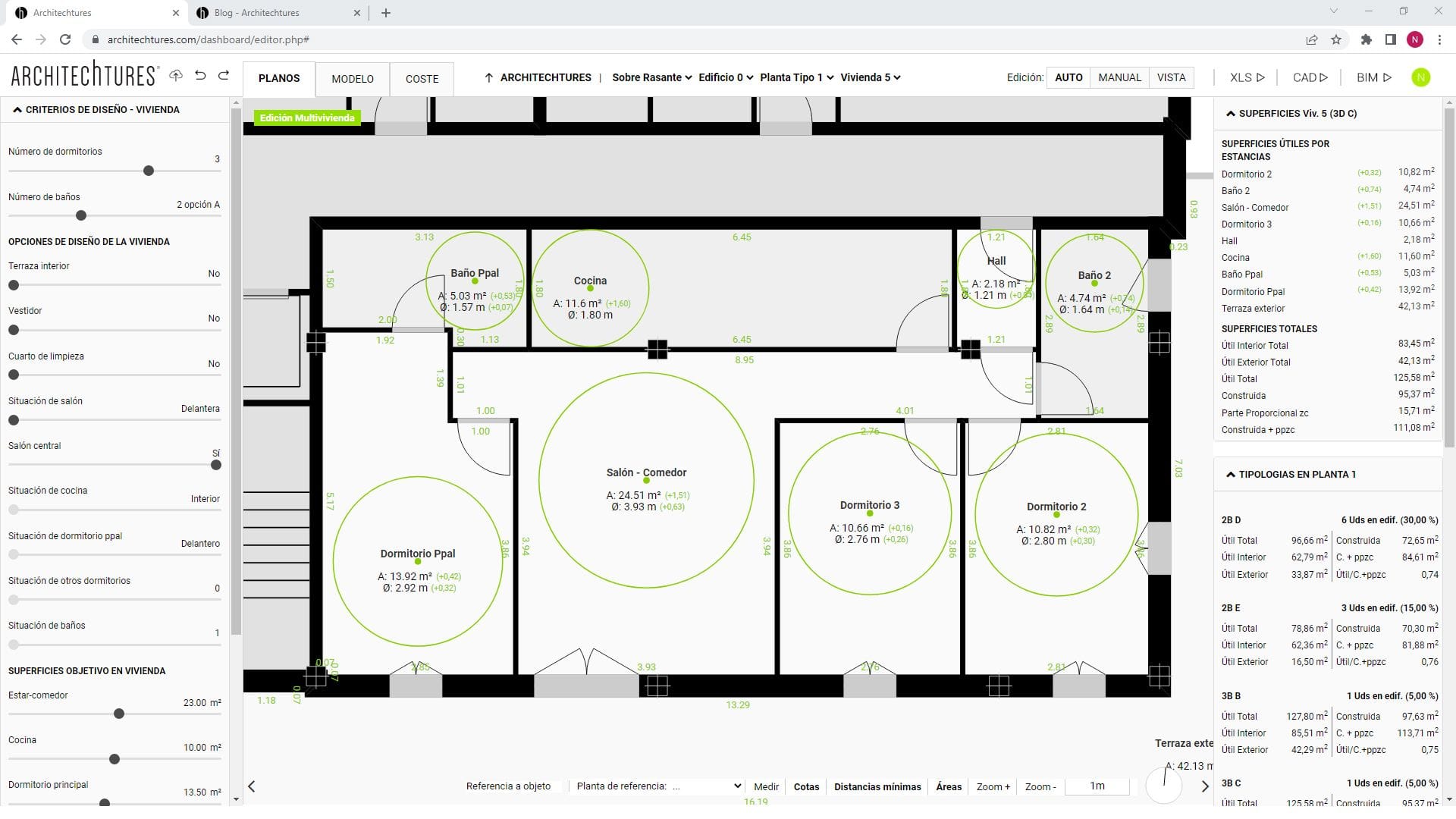

Dwelling Floorplanner – AI Powered Architecture Design

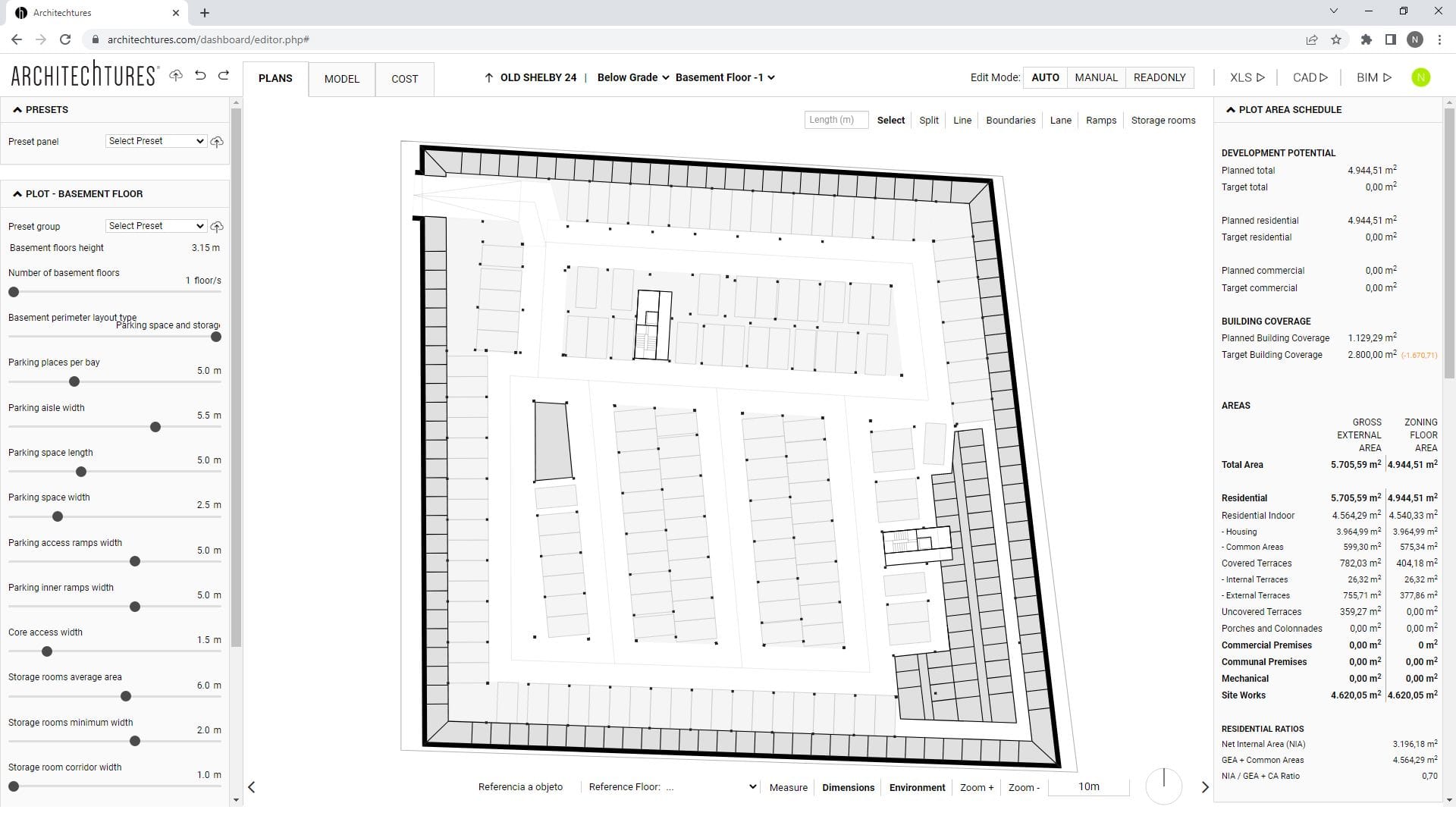

Basement – Automated AI Design for Parking Garages

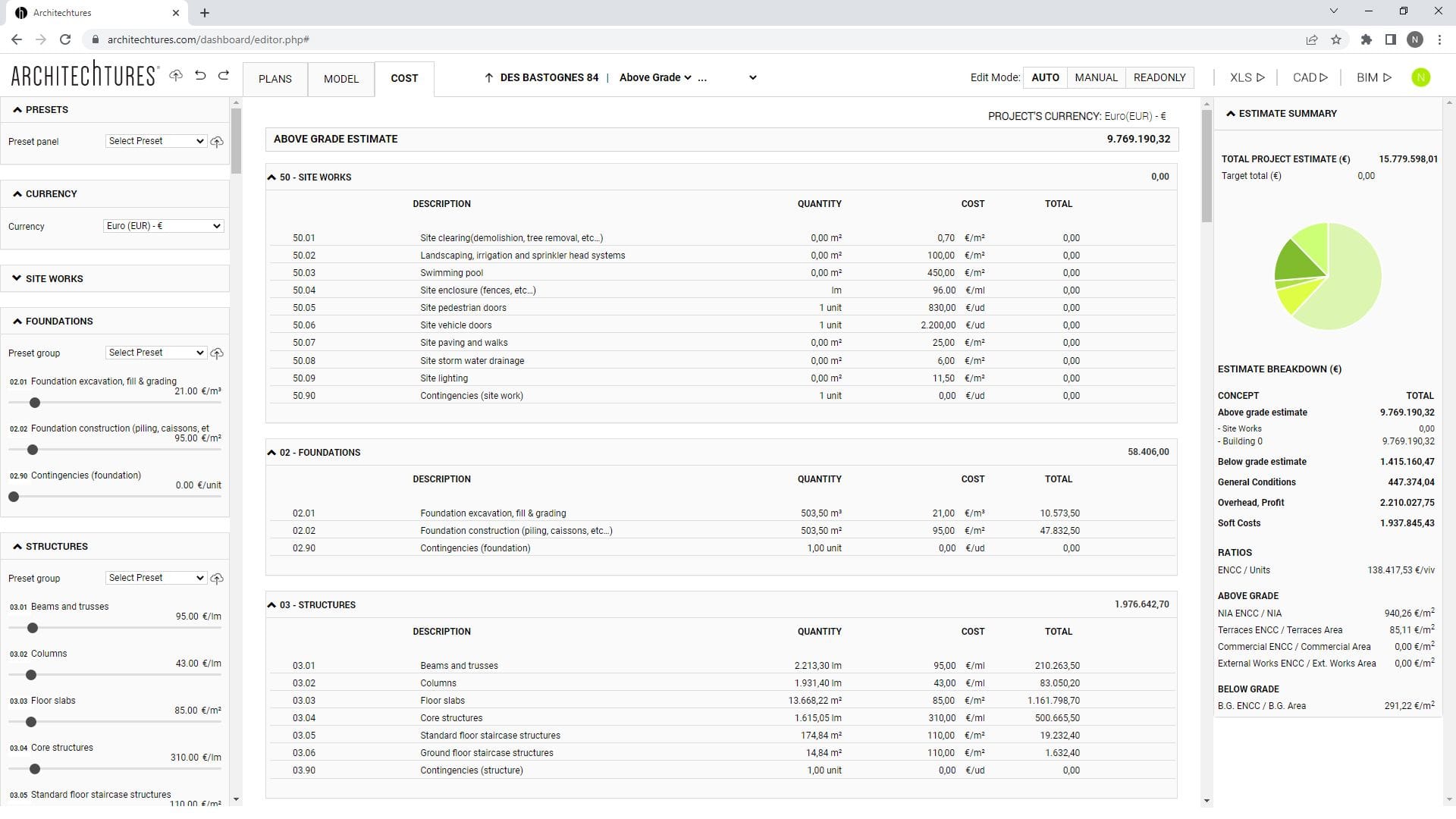

Cost – Automated Estimate and BOQ in Building Design
